SECTION TWO - FRONT PANEL OPERATION

F5 (H Off) Main-Parms-H Off

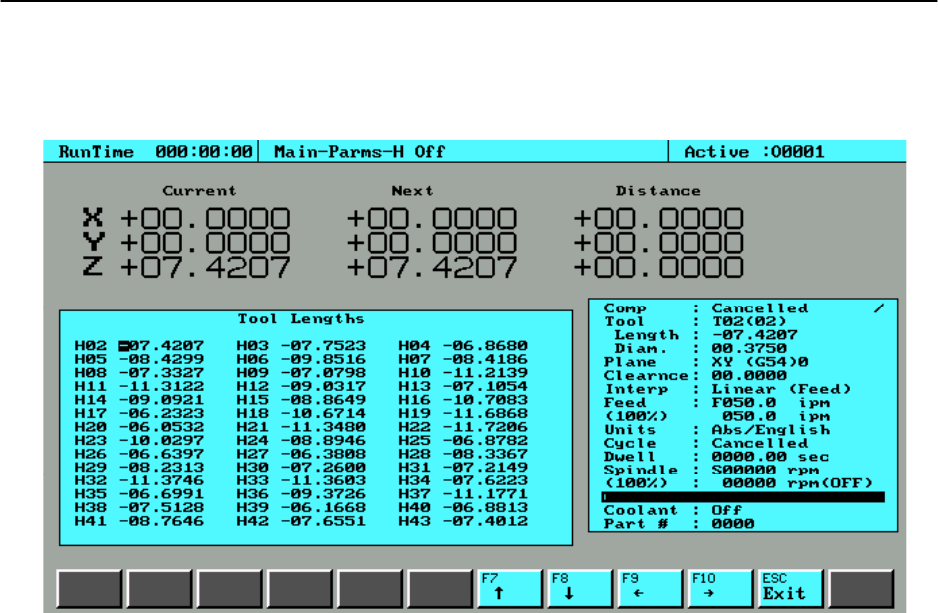

The F5 (H Off) key displays the 99 H tool length offsets available on the control. These offsets

are accessed and edited in the same manner as all other parameters. The H offset screen follows.

The cursor will default to the active tool number.

F6 (Save) Main-Parms-Save

F6 (Save) saves all files in the RAM directory to a floppy. You will be informed that duplicate

files on the floppy will be overwritten. You will then be asked to verify by pressing F1 (Ok).

F7 (Load) Main-Parms-Load

Loads files from a floppy disk into the RAM directory. You will be informed that the current

parameters will be overwritten. You will then be asked to verify by pressing F1 (Ok).
