SECTION FOUR - PREPARATORY FUNCTIONS (G CODES)

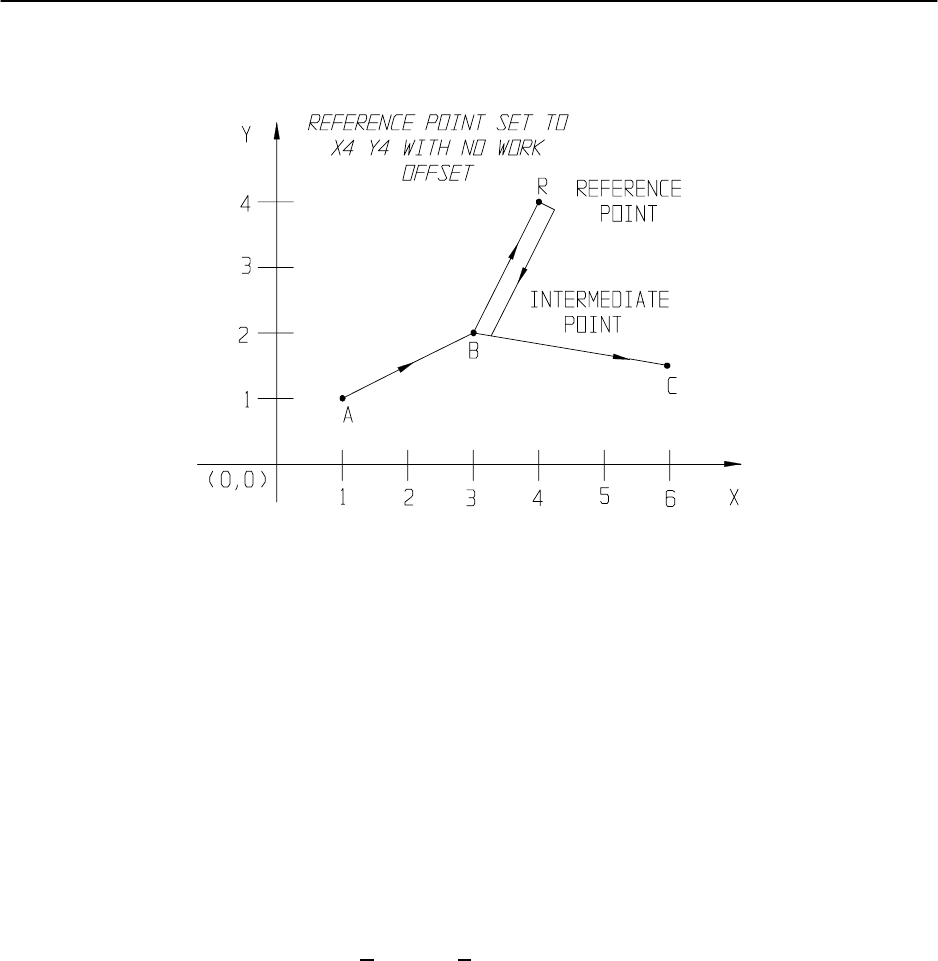

Example of G28 and G29:

X1 Y1 Point A

G28 X3 Y2 Point B then Point R

G29 X6 Y1.5 Point B then Point C

G30 2nd, 3rd, 4th Reference Point Return

This function works in an identical manner to the G28 reference point return except that a 2nd,

3rd, and 4th reference point can be called. The command format is as follows.

G30 P3 X____ Y____ Z____

G30 P2 X____ Y____ Z____

G30 P4 X____ Y____ Z____

reference point intermediate point

If no P is specified, P2 is assumed. P <

1 and P > 5 are illegal and will result in an error 542

“G30 illegal return to reference parameter on G30 block”.
